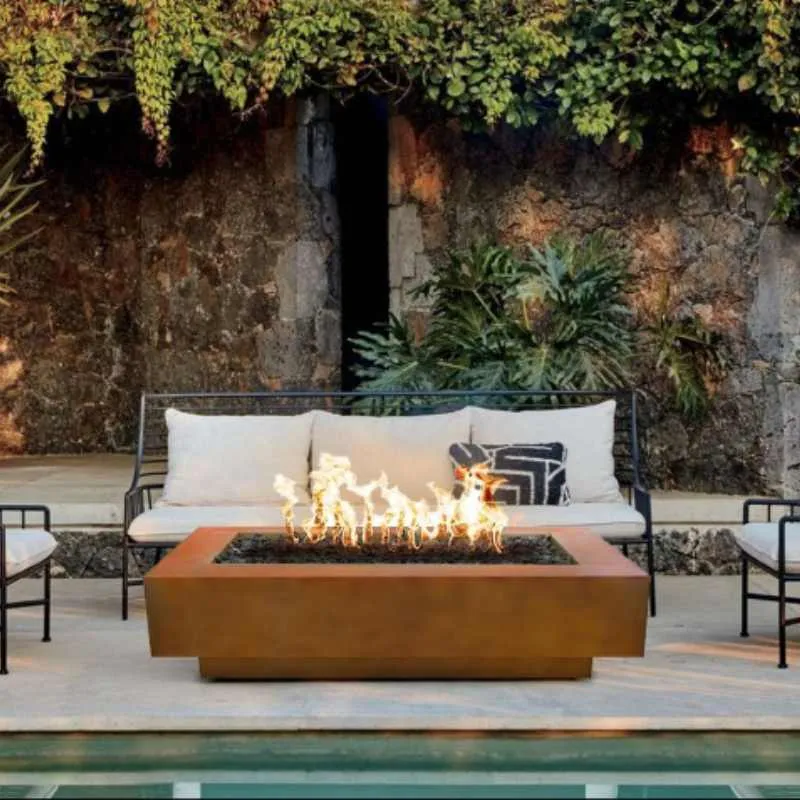

The Cedar Park Fire Pit in Corten Steel
The Cedar Park Fire Pit comes available in 6 sizes (48", 60", 72", 84", 96", 108") and has multiple finish options (GFRC Concrete, Wood Grain Concrete, Hammered Copper, Corten Steel, Stainless Steel & Powder Coated Metal)
Benefits of Corten Steel
Corten Steel (aka weathering steel) is a group of steel alloys which were developed to eliminate the need for painting, and form stable rust-like appearance after several years' exposure to weather. The benefits of corten steel include:
- Durability
- Eco-Friendly
- Ever Changing Appearance
- Minimal Maintenance Required
Cedar Park 60" Fire Pit Specs
- Dimensions: 60" X 28"
- Height: 15”
- Burning Area: 42" x 10”
- Toe Kick: 3" x 2"
- Weight: 375 lbs
- BTU: 65K
- Glass: 50 lbs

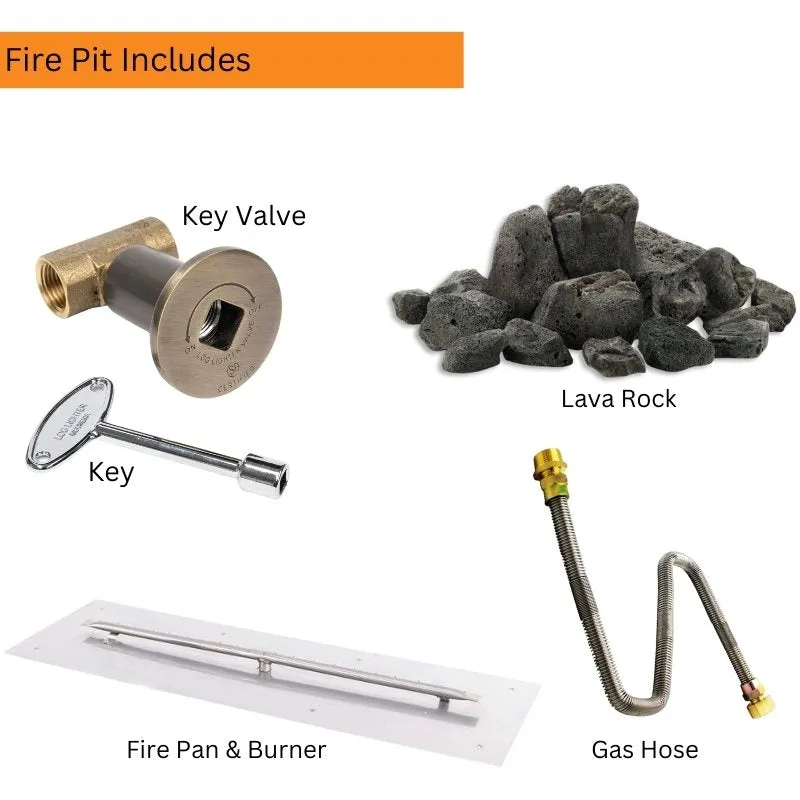

What is Included Standard?
Every Cedar Park Fire Pit, regardless of your ignition, fuel or color configuration comes standard with the following:
- Fire Pan
- Burner
- Key Valve
- Key
- Gas Hoses
- Lava Rock
Should You Upgrade to the Bullet Burner?
The patented tips on the bullet burner creates a taller flame while using less gas. The bullet burner isn't for everyone as the flame projects upward out of the burner and looks less "natural" than standard burners. But if a taller, livelier flame is what you are after...the bullet burner is for you!
Ignition Options
MATCH LIT:
How it works? - with match lit ignition the gas valve is turned on via a key (aka dante valve). You then safely light the burner with a kitchen lighter or match. There is no safety feature built in to shut the gas off if the flame goes out.
- Budget friendly
- No electricity or batteries needed
MATCH LIT WITH FLAME SENSE:
How it works? - to light the burner you push the on/off knob to activate gas flow then safely light the gas coming out of the pilot with a kitchen lighter or match. With flame sense, the gas automatically shuts off if your flames blow out.
- Monitors flame balance
- Adds extra layer of protection if flames blow out
- Adjustable flame height
- No electricity or batteries required
FLAME SENSE WITH SPARK IGNITION:
How it works? - uses a battery driven push button ignition to light your fire feature. No electricity is needed and the gas automatically shuts off if the flames blow out.
- Battery powered ignition
- Flame sense adds extra layer of protection if flames blow out
- Adjustable flame height
- No electricity required
ELECTRONIC IGNITION (LOW VOLT):
How it works? - low voltage (12 VAC) electronic ignition is required for fire features within 5 feet of water. Electronic ignition has all the safety features built in and enables you to control your fire feature remotely. Benefits of low volt electronic ignition:
- Self-monitoring safety features
- Perfect for Pool Automation
- Convenient Control Options
- Transformer included standard to achieve low voltage
ELECTRONIC IGNITION:
How it works? - electronic ignition has all the safety features built-in and enables you to control your fire feature remotely. Electricity (110V) is required to operate. Benefits of electronic ignition include:
- Self monitoring safety features
- Convenient control options
- Plug & play ready
- Easy for anyone to use

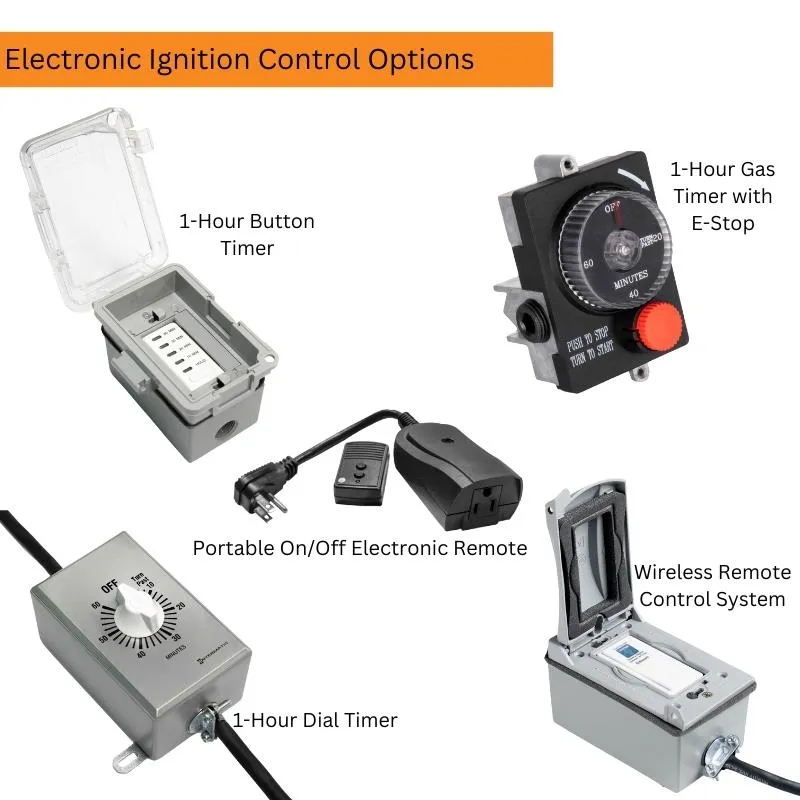

Control Options for Electronic Ignition
- Portable On/Off Electronic Remote - outdoor rated, includes wireless remote and receiver
- Wireless Remote Control System - includes wireless on/off remote control & receiver, plus outdoor rated electrical box with mounted switch.
- 1-Hour Dial Timer - includes outdoor rated electrical box and timer with dial. 60 mins max runtime
- 1-Hour Button Timer - includes wall mounted timer with 10 min, 20 min, 30 min, 60 min and HOLD timer options
- 1-Hour Gas Timer with E-Stop - includes wall mounted 60 min dial timer & emergency stop button
Resources
INSTALLATION MANUALS:
- Match Lit Ignition
- Match Lit with Flame Sense Ignition
- Spark with Flame Sense Ignition
- Electronic - Low Volt (12V)
- Electronic Ignition
SPEC SHEET: Cedar Park Fire Pit - Corten Steel | 60"
