- Durable design: Bike motor kit designed with premium aluminum, this engine has high hardness, wear resistance, and corrosion resistance. Bicycle engine kit has the upgraded CVT gearbox, which effectively improves the operational efficiency and response speed of the entire system. So it can adapt to complex environments and conditions
- Effective cooling System: By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting driving
- Powerful engine: The bicycle motor kit 2-stroke engine can provide higher intake and exhaust efficiency, saving energy and fuel (Fuel Consumption: Min. ≤610g/kW.h). It can provide stronger power (Max. Power: 1.9kw/7000rpm) during driving and ensure that your drive will be very smooth and powerful
- Easy to operate: The bike kit features a electronic ignition system, which leads to higher energy and ignition efficiency. So you can start the bicycle engine kit quickly and safely
- Outstanding performance: With its outstanding performance parameters, this well-designed engine can reach a Max. speed of 48km/h. In addition, it has extraordinary load-bearing capacity (396.8 lbs), adapting to the various needs of different groups of people, and ensuring excellent power performance in any situation
Details
Air Filter: It is equipped with an air filter, which can effectively prevent impurities from entering the cylinder.
Pull Rope Start: Compared to electric starting, the rope starting engine has a simpler structure and more convenient operation.
Application
It is fit for 49cc 2-stroke pocket bike, mini dirt bike, beach bike, ATV or scooter.
Specification
Engine Type: Single Cylinder, 2 Stroke, Air-cooling
Material: Aluminum
Color: Silver, Black
Ignition System: Electronic Ignition
Start Mode: Pull Rope Start
Shifting Way: Sprocket
Clutch: Dry Swing Block Clutch
Displacement: 49.85CC
Max. Power: 1.9kw/7000rpm
Rated Power: 1.7kw/6000rpm
Continuous Power: 1.6kw/5500rpm
Overload Power: 1.83kw/6500rpm
No-load Speed: 12500rpm
Max. Speed: 48km/h
Max. Torque: 2.7N.M/6500rpm
Max. Horsepower: 3PS
Max. Load Capacity: 180kg/396.8lbs
Min. Fuel Consumption: ≤610g/kW.h
Spark Plug: L6T or MB6A
Spark Plug Gap: 0.5mm/0.02in
Bore * Stroke: Φ44*32.8mm/1.7*1.3in
Carburetor Type: H117B
Reduction Ratio: 1:1
Noise Level: 100.7dB (SPL); 116.9dB (SWL)
Fuel Mixture (90# Gasoline : 2-stroke Engine Oil): 25:1 (Early); 30:1 (Later)
Fuel Tank Capacity: 1.2L/0.32gal
Fuel Tank Size: 23*12*12cm/9.1*4.7*4.7in
Engine Dimensions: 29*14*22.6cm/11.4*5.5*8.9in
Package Size: 34*21*23.5cm/13.4*8.3*9.3in
Net Weight: 3.85kg/7.9lbs
Gross Weight: 4.3kg/9.5lbs

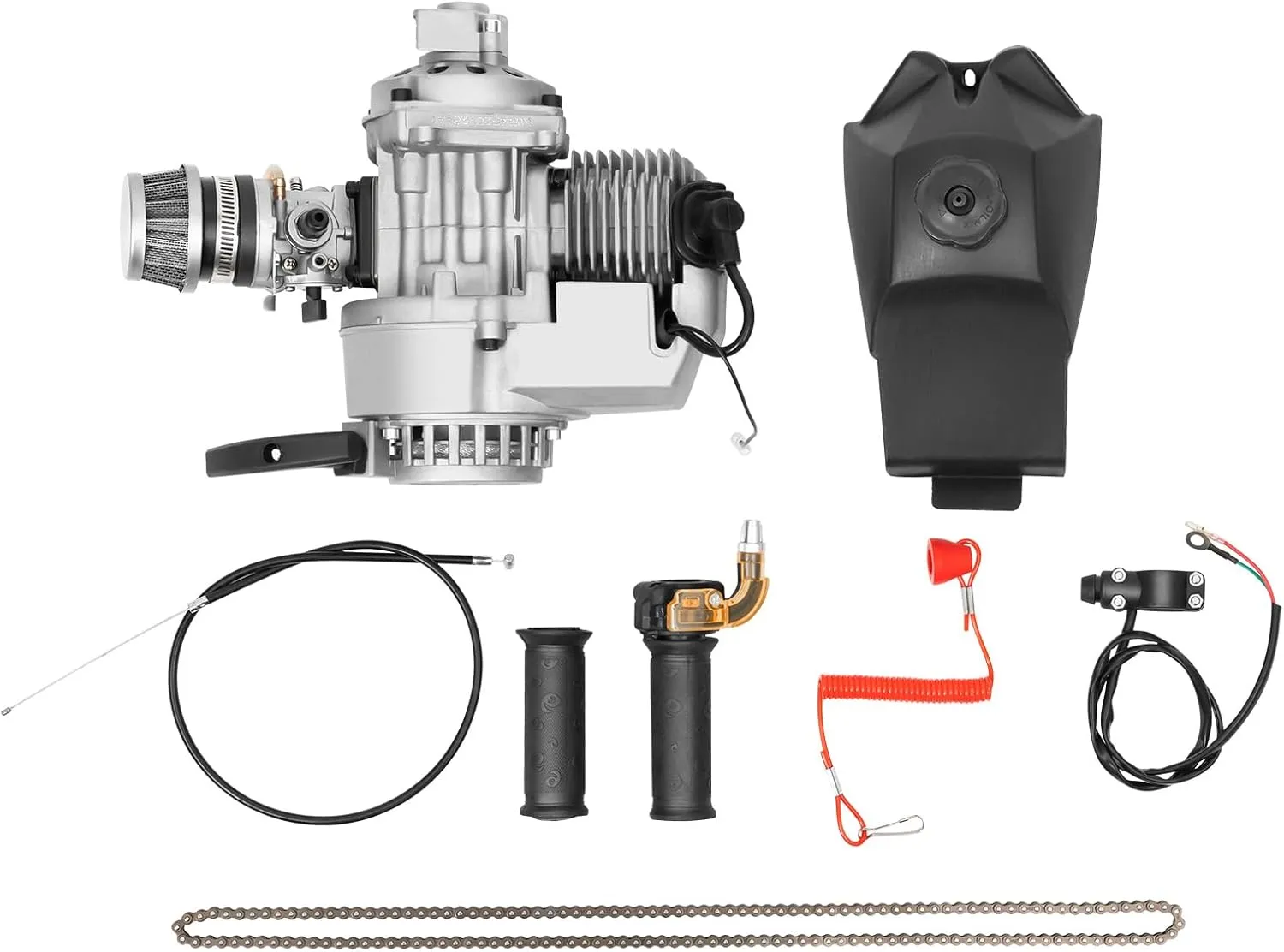

Package Included
1* Engine
1* 25H-136L Chain
1* Kill Switch
1* Throttle Grip
1* Left Grip Cover
1* Fuel Tank
1* Throttle Cable
Other Accessories for Installation
.
