- Upright sump pump for industrial, residential, and commercial drainage applications
- 115 VAC, 60 Hz single-phase TEFC electric motor
- Stainless steel shaft, screen, and float, with carbon bearings
- Temperature range of 40 to 200 degrees F (4 to 93 degrees C)
- Female NPT discharge port

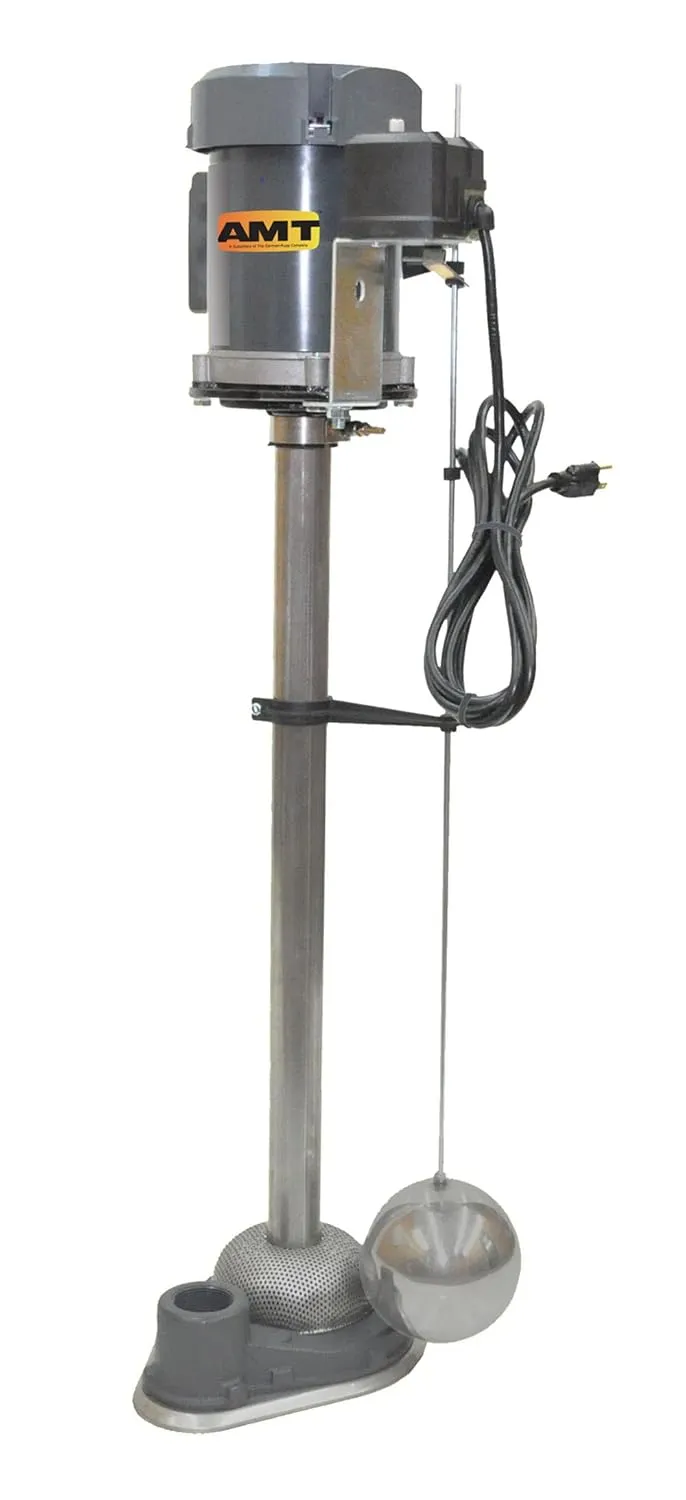

The AMT stainless steel industrial/commercial sump pump is constructed with stainless steel components and carbon bearings, and is suitable for general home, industrial, and commercial drainage applications. It is powered by a 115 VAC, 60 Hz, single-phase, totally enclosed, fan cooled (TEFC) electric motor, and equipped with a float assembly for automatic shutoff, a semi-open clog-resistant impeller, 8' of 16/3 115 VAC line cord, and a female National Pipe Thread Taper (NPT) discharge port for compatibility with most discharge hose assemblies. It can transfer material ranging from 40 to 200 degrees F (4 to 93 degrees C), and requires a sump pit at least 14" in diameter and 24" deep for operation. It ships fully assembled except for the float assembly. This pump is suitable for clean drainage applications in residential, commercial, and industrial settings.
Pumps use mechanical action to move liquids, gases, or slurries (solids suspended in a liquid or gas). The mechanical action is categorized as either positive displacement (PD) or kinetic. PD pumps capture and release discrete amounts of flow into a chamber and then force it out. Some examples of PD pumps are fuel and oil pumps in cars, pumps in hydraulic systems, and bicycle pumps. Kinetic pumps move liquids, gases, or slurries by transferring energy from the pump's movement to the flow. They use an impeller to draw the flow in, add energy to the flow, and move it through a volute (a spiral funnel through which the flow moves), and into the system. Some examples of kinetic pumps include centrifugal (the most common pump in industrial applications), in-line pumps, sump pumps, and suction pumps. Energy sources for all types of pumps include wind power, manual operation, electricity, and gasoline or diesel fuel.
American Machine and Tool (AMT) manufactures centrifugal and diaphragm pumps. The company is headquartered in Royersford, PA.
What's in the Box?
- AMT stainless steel industrial/commercial sump pump
- Float assembly
- Product Dimensions : 11 x 11 x 29 inches; 39 Pounds
- Department : General Dewatering Pumps
- Date First Available : January 22, 2010
- Manufacturer : AMT Pumps
- Country of Origin : USA
