36" Drop in Burner Pan. Square. Automated

Sitting around a warm outdoor fire pit, recalling fond old memories is something everyone enjoys, especially on those chilly nights! Now your customers can organize their own unforgettable fire display with our 36" square drop-in pan with electronic high capacity ignition kit (natural gas). With just the flip of a switch, your customers and their guests will be enjoying a brilliant flame and lots of wonderful conversations!

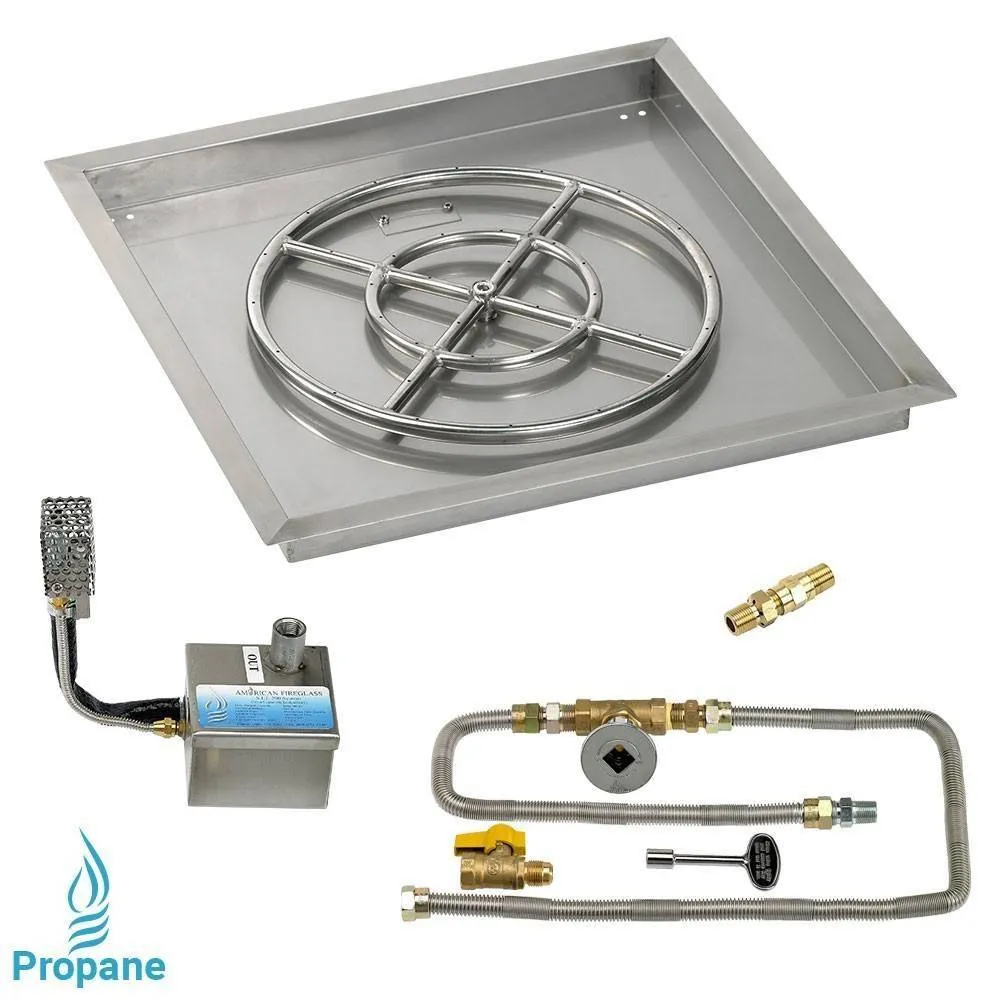

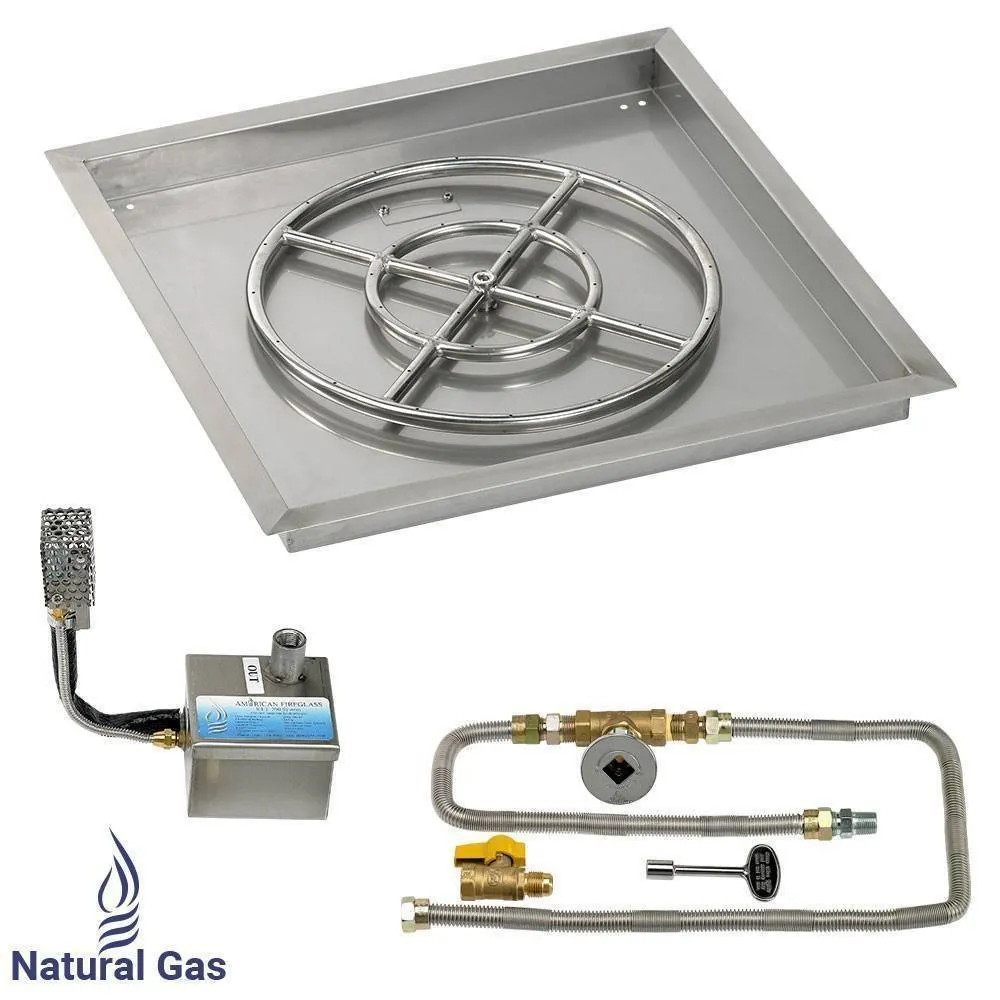

Our 36" square drop-in pan (30" burner) with electronic high capacity ignition kit comes fully equipped with all the following components:

36" Square Drop-in Burner Pan - Our 36" square drop-in burner pan comes with a convenient 'lip' so that it can be installed into your square-shaped fire pit and easily removed after use. This burner pan greatly reduces the amount of fire glass you will need to fill your fire pit by creating a false bottom which gives the illusion that your fire pit is full, whereas only the top part of it is. All our square drop-in burner pans are made of 100% stainless steel, which means they are very durable and can withstand extreme heat as well as harsh weather without sustaining any damage or rusting. They also come with built-in, drilled weep holes to prevent water accumulation.

30" Ring Burner - This 30" fire pit ring burner fits on top of your fire pit burner pan. It is made of high grade 304 stainless steel which ensures its durability under extreme heat and severe weather conditions. The cross bar design provides for better flame distribution. The holes in the ring are drilled, not punched, which prevents any loud whistling noises. The ring burner works best under 2 - 4 inches of fire glass. This burner requires a 3/4" gas line.

High Capacity S.I.T. Electronic Ignition Kit - A slightly larger version of our standard S.I.T. (Smart Ignition Technology), this high capacity S.I.T. electronic ignition kit is still very small as compared with other products on the market. Developed exclusively to work with fire bowls or fire pit burners, the S.I.T. kit consists of a Hot Surface Ignition control that electronically opens and closes the gas valve. It also features a thermopile with automatic flame sensor for additional safety. This S.I.T. kit has a maximum gas output of 512 BTU/hr, which means it is well suited to larger fire features that require a large amount of gas for the desired effect.

24V Transformer

Safety Shut-Off Valve

Key Valve

Two Gas Flex Lines

 **************************************************************************************
Caution: Installing this electronic ignition kit can be dangerous. We do NOT recommend that you attempt to install this product yourself unless you are a certified NFI professional. To find a certified NFI professional in your area, click here.
**************************************************************************************

36" Square Drop-In Pan (30" Burner) with High Capacity S.I.T. System Specifications

•     Product Weight: 52 Lbs
•     Material: 100% 304 Stainless Steel (hand crafted)
•     Color: Stainless Steel
•     Fire glass capacity: 135 lbs of fire glass required (not included)
•     Burner Pit Pan Dimensions: 36" L x 36" W x 2" D x 1 1/4" Flange
•     Ring Burner Features: Drilled holes (not punched) in order to prevent whistling
•     Burner size: 30" (3/4" gas Line Required)
•     Includes: 3/4" bottom gas inlet for easy installation
•     Burner Heat rating: 443,000 B.T.U/Hour rating maximum
•     For use in: To be used in outdoor, vented, natural gas fire features ONLY
•     Installation: Certified NFI Professional Recommended
•     Flame / Heat Sense: Thermopile
•     Ignition Type: Hot Surface Ignition (Glow Plug)
•     Ignition Sequence: Intermittent Pilot
•     Ignition Source: Intermittent Pilot
•     S.I.T. Max. Btu Output: 512K Btu/hr
•     Inlet / Outlet Size: 3/4" FPT
•     Operating Voltage: 24 volts ac
•     Inlet Gas Press: Limit: 2.0 PSI
•     Valve Enclosure Dim.: 4 1/2" x 4 1/2" x 5" (tall)
•     Warranty: 5 Year manufacturer warranty
•     Prop. 65 Warning: This product may contain compounds known to the state of California to cause cancer, birth defects, or other reproductive harm.
