18" Drop in Burner Pan. Square. Automated

Sitting around a warm outdoor fire pit, recalling fond old memories is something everyone enjoys, especially on those chilly nights! Now your customers can organize their own unforgettable fire display with our 18" square drop-in pan with electronic ignition kit (natural gas). With just the flip of a switch, your customers and their guests will be enjoying a brilliant flame and lots of wonderful conversations!

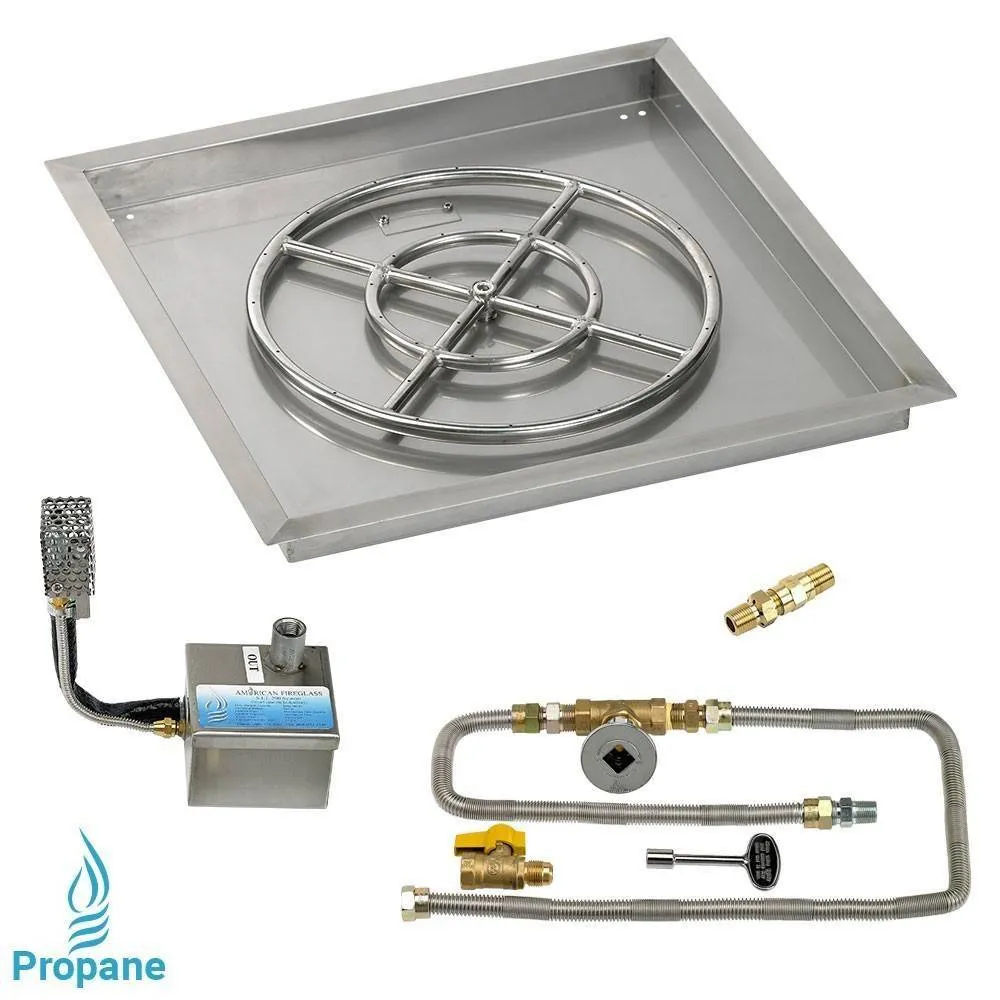

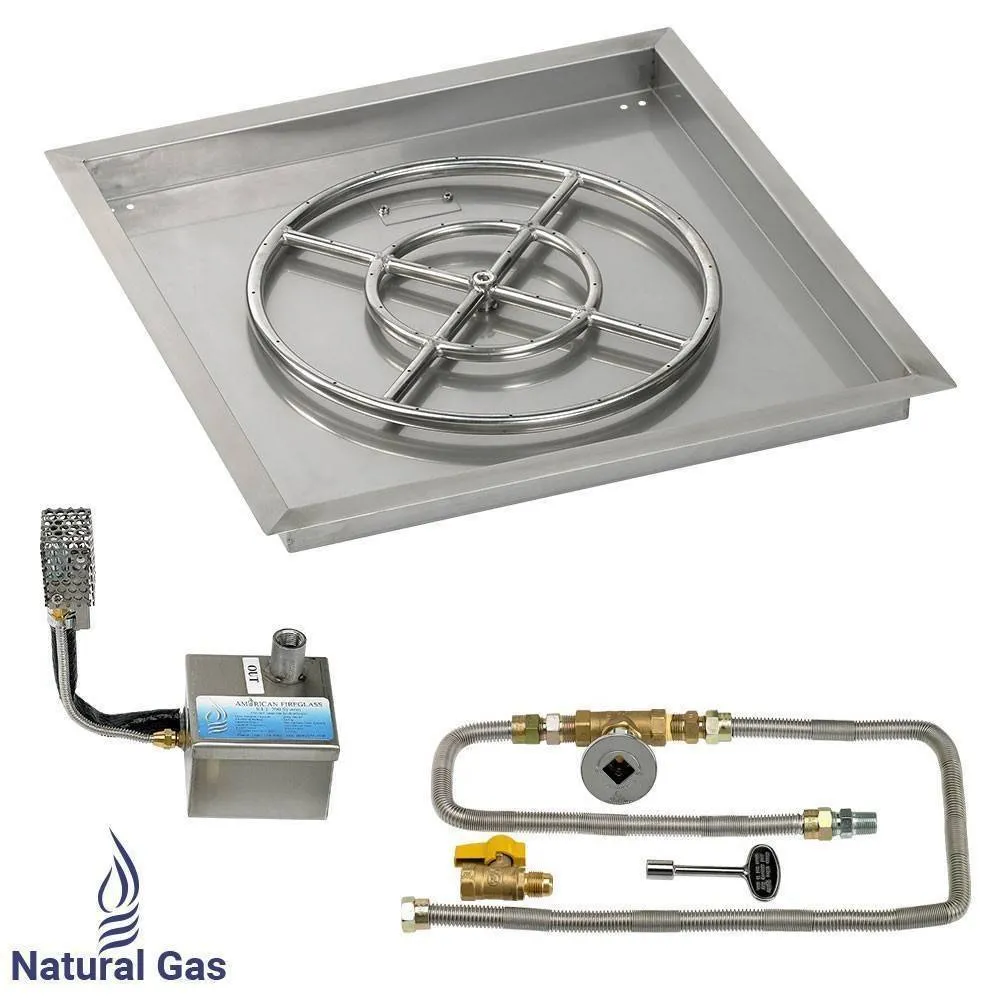

Our 18" square drop-in pan (12" ring) with electronic ignition kit comes fully equipped with all the following components:

18" Square Drop-in Burner Pan - Our 18" square drop-in burner pan comes with a convenient 'lip' so that it can be installed into your square-shaped fire pit and easily removed after use. This burner pan greatly reduces the amount of fire glass you will need to fill your fire pit by creating a false bottom which gives the illusion that your fire pit is full, whereas only the top part of it is. All our square drop-in burner pans are made of 100% stainless steel, which means they are very durable and can withstand extreme heat as well as harsh weather without sustaining any damage or rusting. They also come with built-in, drilled weep holes to prevent water accumulation.

12" Ring Burner - This 12" fire pit ring burner fits on top of your fire pit burner pan. It is made of high grade 304 stainless steel which ensures its durability under extreme heat and severe weather conditions. The cross bar design provides for better flame distribution. The holes in the ring are drilled, not punched, which prevents any loud whistling noises. The ring burner works best under 2 - 4 inches of fire glass.

S.I.T. Electronic Ignition Kit (Natural Gas) - Our S.I.T. (Smart Ignition Technology) system is the smallest electronic ignition system available in today's market. Its size makes it ideal for use in fire features with very little vertical space. Developed exclusively to work with fire bowls or fire pit burners, the S.I.T. kit consists of a Hot Surface Ignition control that electronically opens and closes the gas valve. It also features a thermopile with automatic flame sensor for additional safety. This S.I.T. kit has a maximum gas output of 290 BTU/hr, which means it works well with most fire features.

24V Transformer
Safety Shut-Off Valve
Key Valve
Two Gas Flex Lines

 **************************************************************************************
Caution: Installing this electronic ignition kit can be dangerous. We do NOT recommend that you attempt to install this product yourself unless you are a certified NFI professional. To find a certified NFI professional in your area, click here.
**************************************************************************************

18" Square Drop-In Pan (12" Burner) with S.I.T. System Specifications

•     Product Weight: 26 Lbs
•     Material: 100% 304 Stainless Steel (hand crafted)
•     Color: Stainless Steel
•     Fire glass capacity: 34 lbs of fire glass required (not included)
•     Burner Pit Pan Dimensions: 18" L x 18" W x 2" D x 1 1/4" Flange
•     Ring Burner Features: Drilled holes (not punched) in order to prevent whistling
•     Burner size: 12"
•     Includes: 1/2 bottom gas inlet for easy installation
•     Burner Heat rating: 92,000 B.T.U/Hour rating maximum
•     For use in: To be used in outdoor, vented, natural gas fire features ONLY
•     Installation: Certified NFI Professional Recommended
•     Flame / Heat Sense: Thermopile
•     Ignition Type: Hot Surface Ignition (Glow Plug)
•     Ignition Sequence: Intermittent Pilot
•     Ignition Source: Pilot
•     S.I.T. Max. Btu Output: 290K Btu/hr
•     Inlet / Outlet Size: 1/2" FPT
•     Operating Voltage: 24 volts ac
•     Inlet Gas Press: Limit: 2.0 PSI
•     Valve Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
•     Warranty: 5 Year manufacturer warranty
•     Prop. 65 Warning:This product may contain compounds known to the state of California to cause cancer, birth defects, or other reproductive harm.
